❶ |
Required tool - Pozidriv Screwdriver |
 |
|
|
| |
|
|
|
❸ |
Remove the yellow films |
|
|
|
❹ |

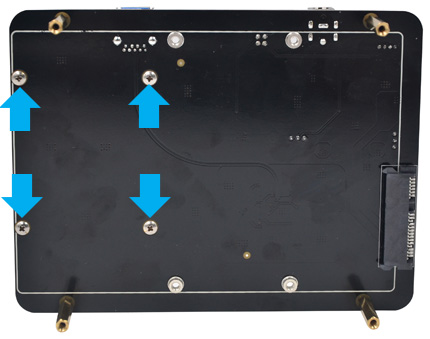

Push a screws
(M2.5*6mm) up through
the mounting hole on the underside of the X830 and
screw the spacer (M2.5*12mm)
down until it is hand tight. |
|
 |
|
 |
| |
|
|
|
❺ |
Insert your hard disk
into the SATA socket and screw down the HDD
(M3*8mm screws).
|
|
|
|
❻ |

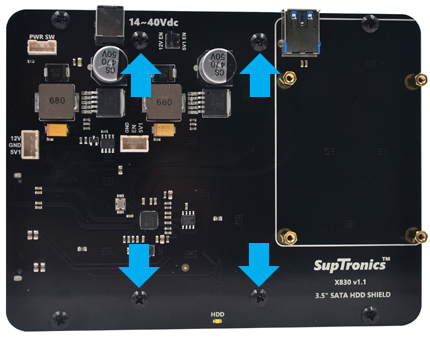

Push a screw
(M3*8mm) up through
the mounting hole on the topside of the X830 and
screw the spacer (M3*30mm)
down until it is hand tight. |
|
 |
|
 |
| |
|
|
|
❼ |
Place your Raspberry Pi
on top of X830 and screw down
(M2.5*6mm screws). |
|
|
|
❽ |

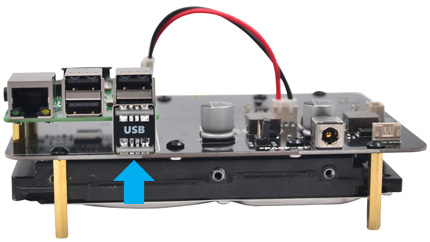

Insert the USB bridge.
The
direction of“USB”must be
upward. |
|
|
|
|
| |
|
|
|
❾ |

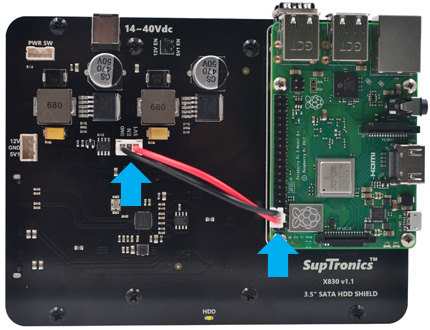

Connect the power cable from X830
to Raspberry Pi pin header - Pin 4 (5V,
Read wire) and Pin 6
(Ground, Black wire). |
|
|
|
 |
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
